How do I Replace a Headlamp Bulb?

Please refer to the "Changing a headlamp bulb" section of your Owner's Manual for information on how to replace a headlamp globe.

Alternatively, please contact your nearest Ford Dealership who will be happy to help.

Changing a Headlamp Bulb

You can find step below:

Accessing and replacing the low beam headlamp bulb

Accessing and replacing the low beam headlamp bulb.

  1. Make sure the headlamps are off.
  2. Remove the scrivet from the modesty panel.
  3. Remove the modesty panel section.

    Remove the modesty panel section.

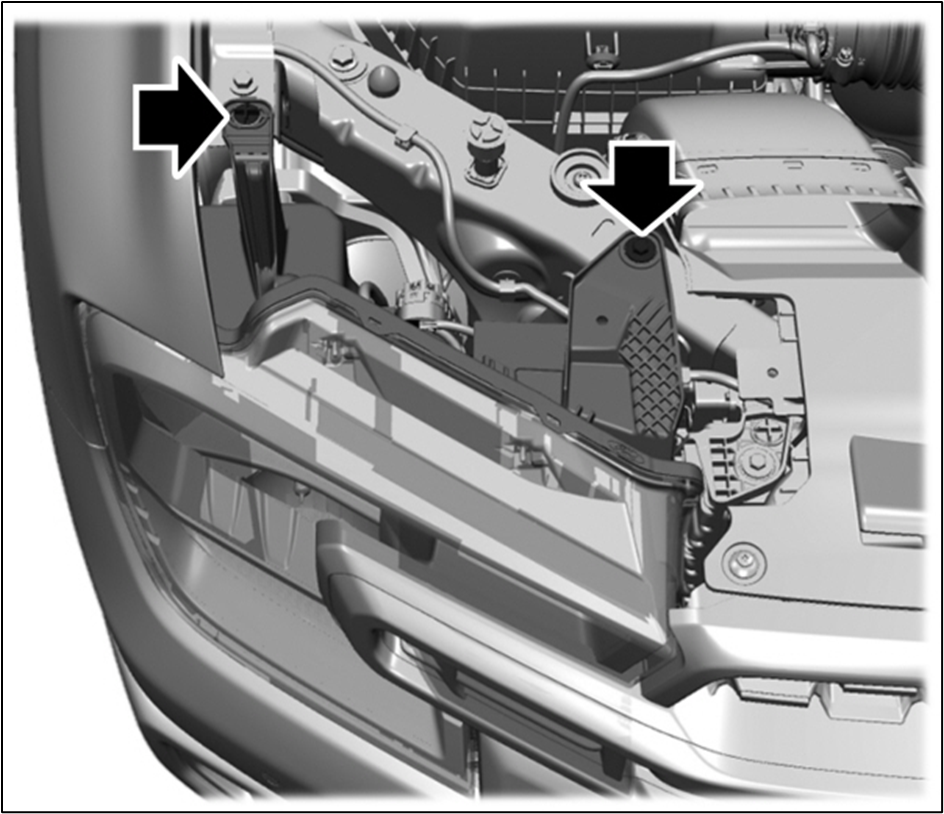

  4. Remove the scrivet from the front fender and the hardware from the bolster.

    Remove the scrivet from the front fender

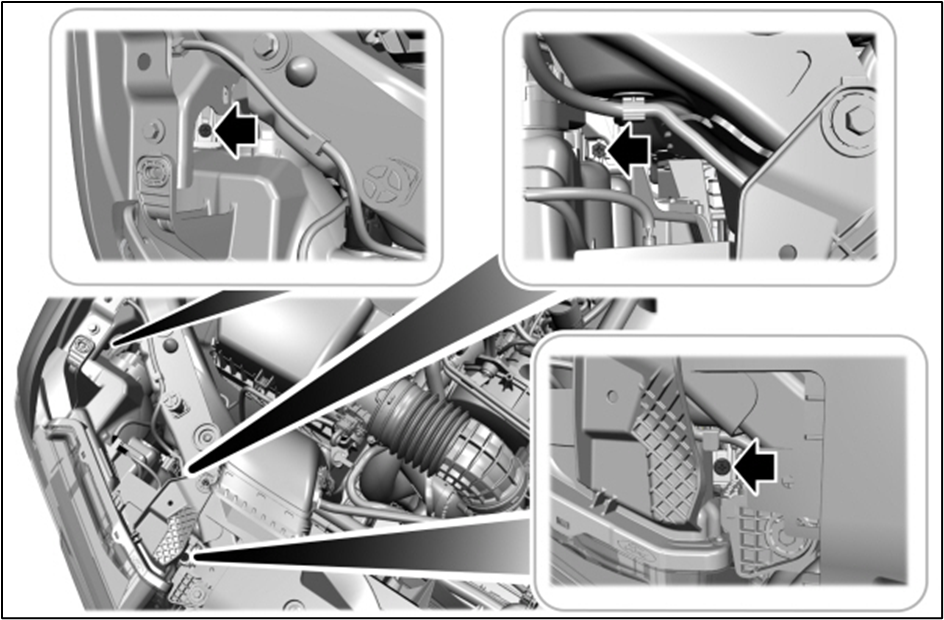

  5. Using a screwdriver loosen, but do not remove, the three screws by turning them two full turns.

    Remove the scrivet from the front fender

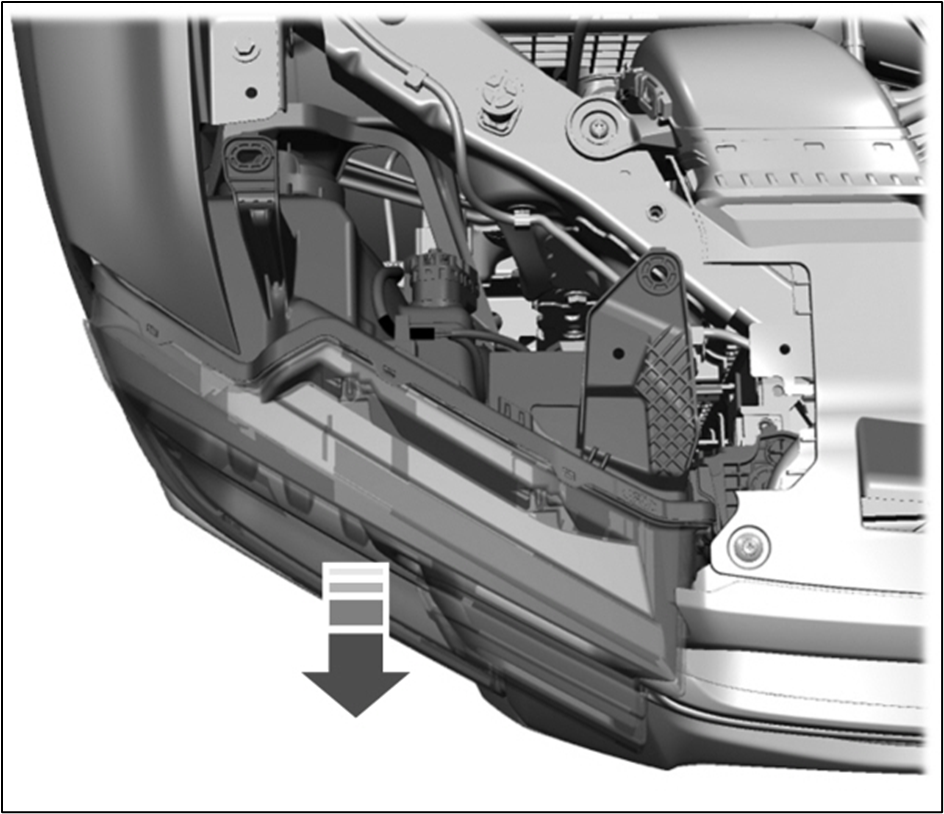

  6. Carefully slide the headlamp assembly forward approximately 30 mm. Do not remove the headlamp. Be careful of the sharp fender edge, as it could damage the headlamp.

    Slide the headlamp assembly forward.

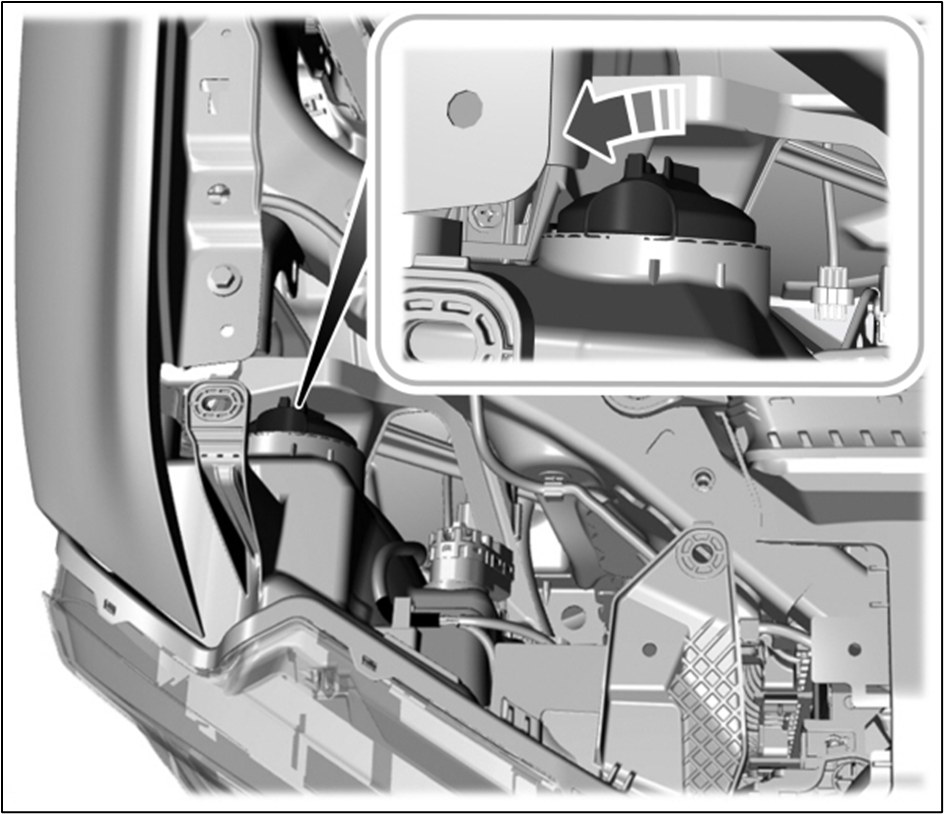

  7. Rotate the low beam bulb cap counterclockwise and remove it from the vehicle.

    Rotate the low beam bulb cap

  8. Disconnect the electrical connector from the bulb.

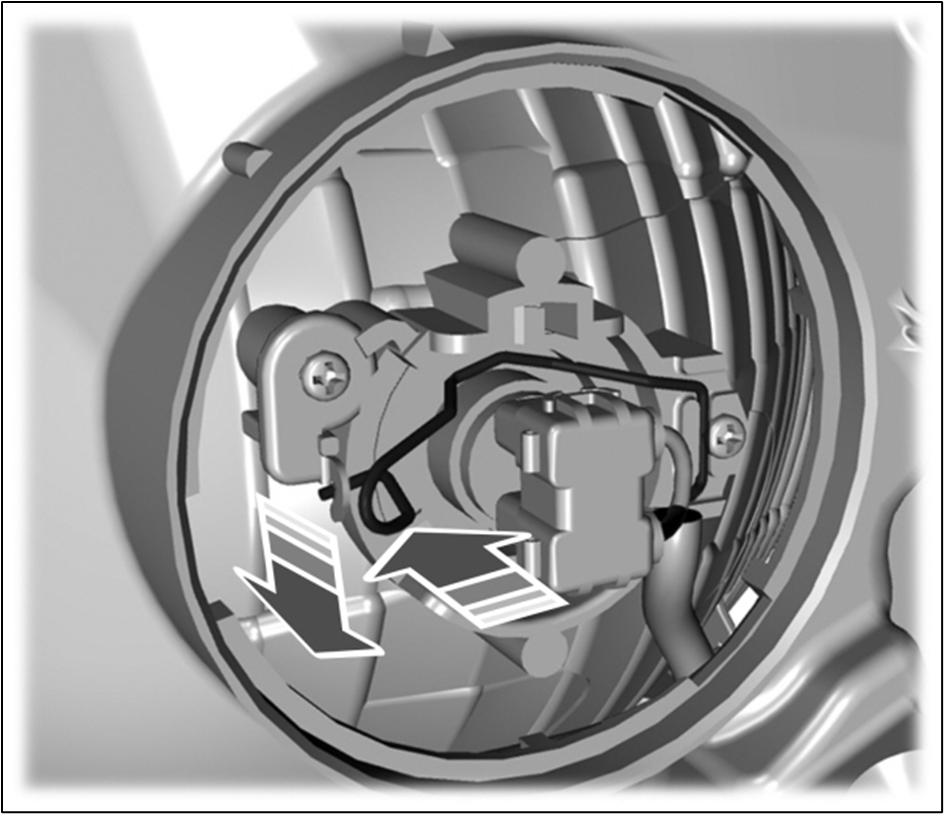

  9. Place your hand behind the headlamp and push the retainer toward the lamp and down.
  10. Move the bulb retainer away from the bulb and remove the bulb.

    Remove the bulb.

  11. To install the bulb, reverse the removal steps.

Note: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Handle the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. If the bulb is accidentally touched, clean it with rubbing alcohol before installing it.

Accessing and replacing the high beam headlamp bulb

Accessing and replacing the low beam headlamp bulb as follows:

  1. Make sure the headlamps are off.

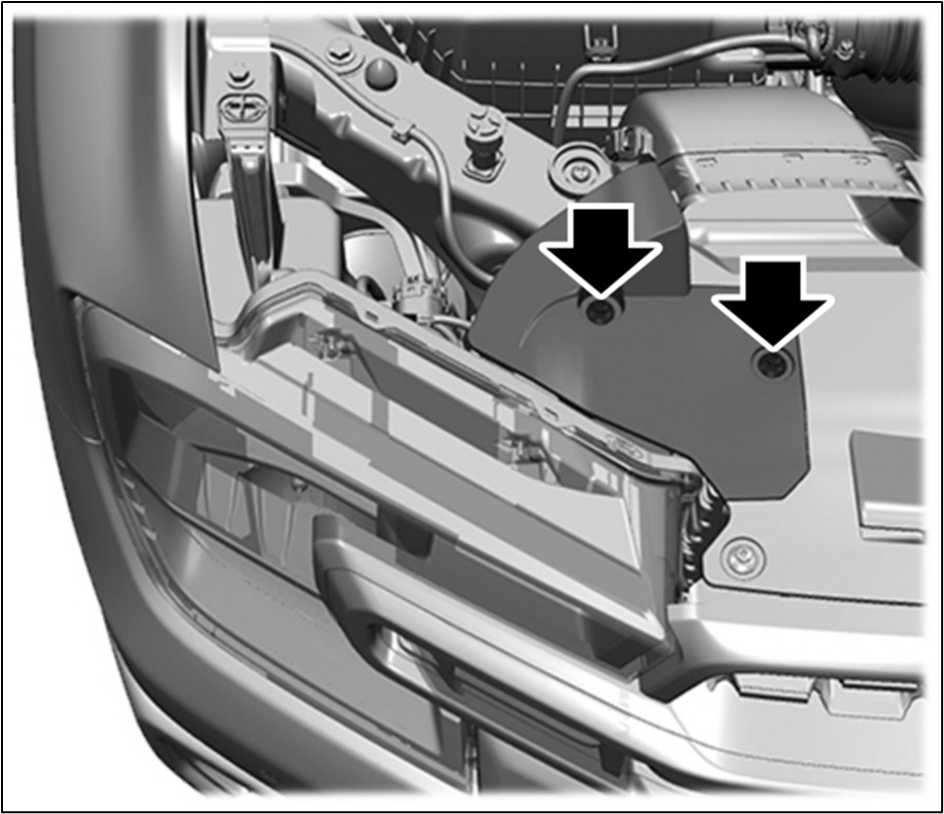

  2. Remove the scrivet from the modesty panel.
  3. Remove the modesty panel section.

    Remove the modesty panel.

  4. Remove the scrivet from the front fender and the hardware from the bolster.

    Remove the scrivet from the front fender

  5. Using a screwdriver loosen, but do not remove, the three screws by turning them two full turns.

    Remove the scrivet from the front fender

  6. Carefully slide the headlamp assembly forward approximately 30 mm. Do not remove the headlamp. Be careful of the sharp fender edge, as it could damage the headlamp.

    Slide the headlamp assembly forward

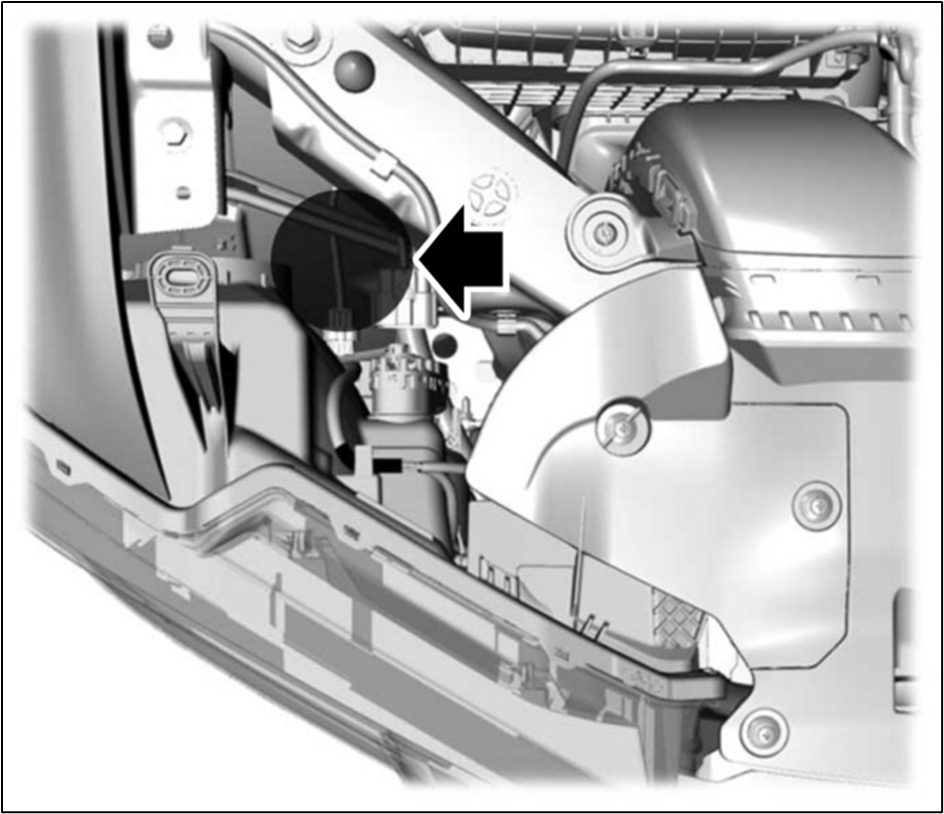

  7. Reach into the space below the low beam socket.

    Reach into the space below the low beam socket.

  8. Disconnect the electrical connector from the bulb.

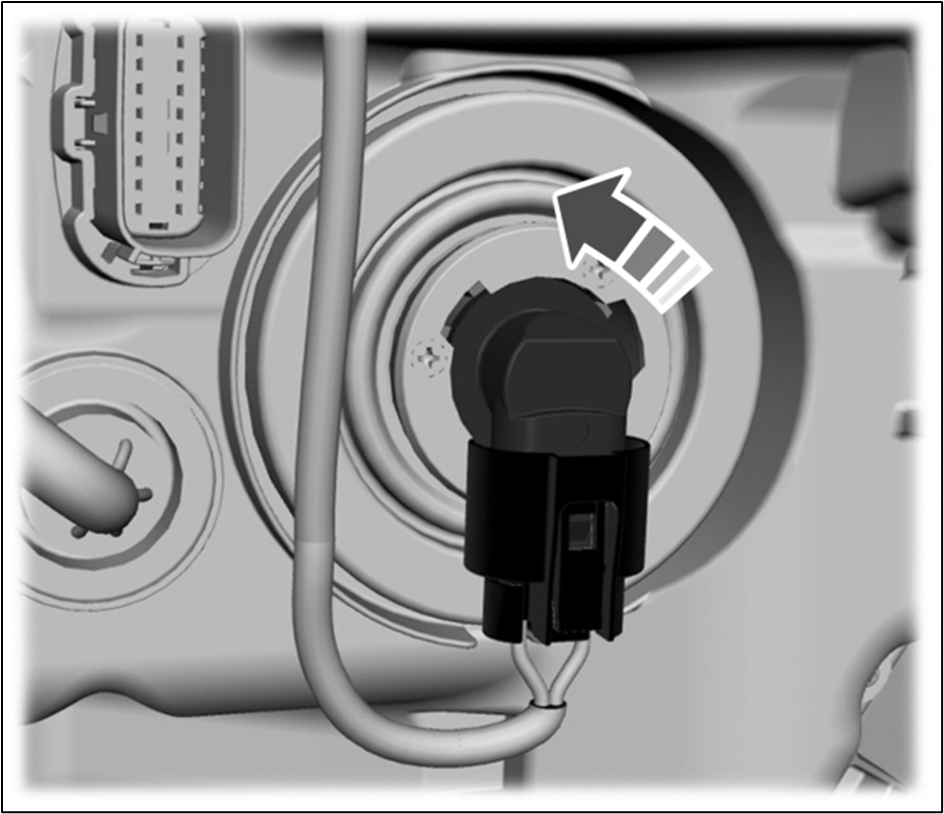

  9. Rotate the high beam bulb socket counterclockwise and remove the high beam bulb.

    Rotate the high beam bulb socket counterclockwise

  10. To install the bulb, reverse the removal steps.

Note: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Handle the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. If the bulb is accidentally touched, clean it with rubbing alcohol before installing it.
